H2S Wall Mount Gas Detector with Audible Visual Alarm

H2S Wall Mount Gas Detector with Audible Visual Alarm

MOQ:	1 τεμ

Λεπτομέρειες

Περιγραφή προϊόντων

Λεπτομέρειες

Εγγραφο:

Βιβλίο του προϊόντος PDF

Μοντέλο Αρ.:

K500

Εμπορικό σήμα:

Kelisaike ή OEM

Προέλευση:

Ναντζίνγκ, Κίνα

Κωδικός HS:

90200000

Δυνατότητα προσφοράς:

1000 μέτρα ανά μήνα

Τύπος:

Ανιχνευτής μετάλλων

Χρήση:

Μεταλλικά, Αέρια

Λειτουργία εγκατάστασης:

Τοποθέτηση στον τοίχο

εφαρμογή:

Βιομηχανία

Πακέτο μεταφοράς:

ΧΑΡΤΟΚΙΒΩΤΙΟ

Προσδιορισμός:

160*126*78mm

Προσαρμογή:

Διαθέσιμο | Προσαρμοσμένη Αίτηση

Στοκ:

1 τεμ

Επισημαίνω:

Explosion Proof Wall Mounted Gas Detector

High Sensitivity Imported Sensors Gas Leak Detector

Audible Visual Alarm Industrial Gas Transmitter

Περιγραφή προϊόντων

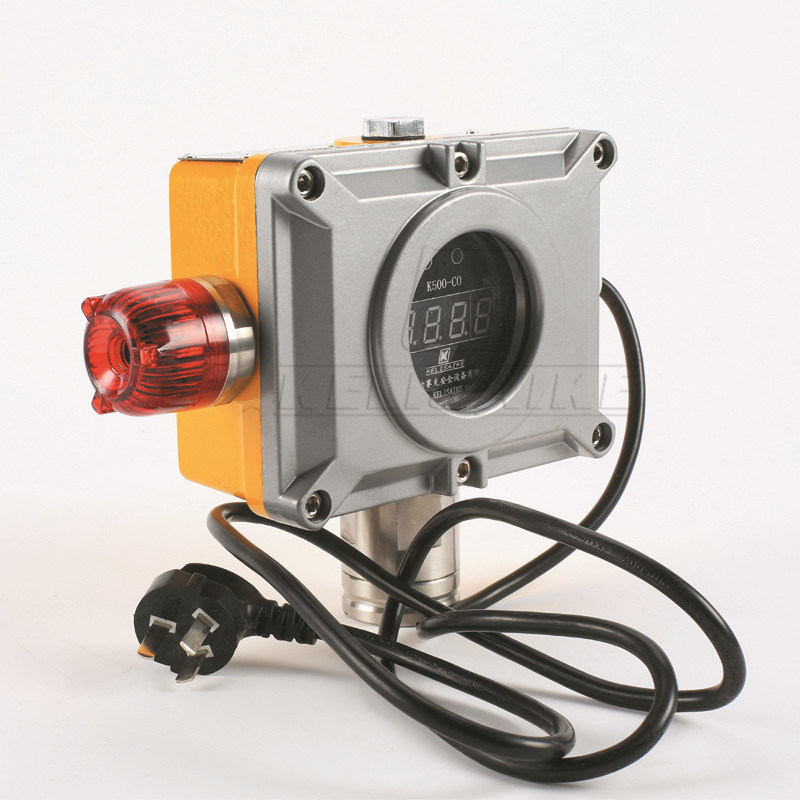

H2S Wall Mount Gas Detector with Audible Visual Alarm

Wireless fixed gas detector K500 industrial gas transmitter

Product Description

K500 series wall-mount gas detector features long service life with high sensitivity imported sensors and explosion-proof design. This wall mount gas detector operates as part of an integrated system (with 4-20mA output analog) or as a stand-alone system. Includes 2 discrete alarm levels (high level & low level) with audible and visual alarm capabilities.

Key Features

High sensitivity world famous imported sensors
Bright, red flashing visible alarm and loud 90dB audible alarm on the spot
Waterproof and dust-proof design for normal and continuous working in harsh environments
Compatible with DCS (Distributed Control System)
Flameproof body design acc. to IEC61508, simple and easy installation and maintenance
Programmable alarm operation value, low or high level alarm indication
220V AC or 24V DC power supply, 4-20mA output analog, three core shield cable, DCS system
Color screen 2+2 digits LCD display presenting real time gas concentration data and corresponding gas types
Full featured self-test: sensors, lithium battery, circuit integrity and acousto optic vibration alarm function
Accessories: operator's manual, detection probe, calibration hose, USB cable, charger and conversion plug
CERTIFICATIONS: CMC, Ex, MA (SAFETY CERTIFICATE OF APPROVAL FOR COAL MINING PRODUCTS IN CHINA)

Product Parameters

Item:	Gas leak detector
Model NO.:	K500 gas leak detector
Sensors:	High sensitivity imported sensors
Sensor service life:	2-5 years
Operating voltage:	220V AC/24V DC
Display:	4 digital LED display
Alarm buzzer:	90db
Alarm mode:	Acousto optic alarm
Ambient temperature:	-20°C ~ +50°C / -50°C ~ +50°C
Relative humidity:	15~90%RH (non condensation)
Material:	Aluminum alloy and stainless steel
Detecting method:	Diffusion
Dimension(mm):	160(L)126(W)78(H)mm
Explosion-proof grade:	ExdII CT6
Weight:	K500-D: 3.5kg K500-N: 3.0kg
Package:	Carton
Pcs/ctn:	1pc/ctn
Ctn size:	260x230x140mm
Payment terms:	T/T
Warranty:	1 year
